TDS Mini Controller (0.0 to 49.9 ppm) – BL983324-115/230VAC
$310.740
+ IVA
Disponible Pronto
Disponible para entrega hasta en 90 días.
Disponible Pronto

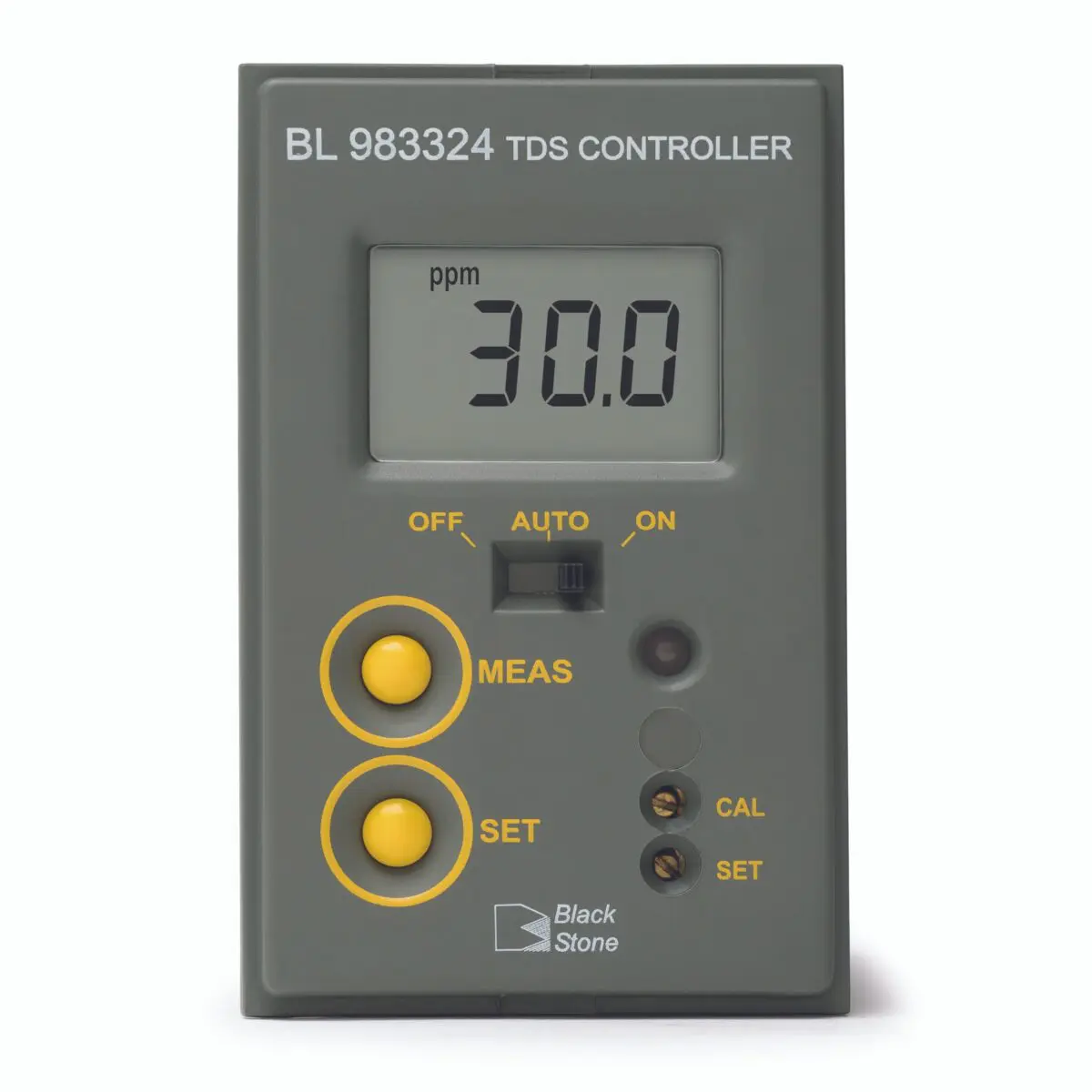

The BL983324 is a compact, panel mounted, process controller for measuring total dissolved solids (TDS) of a process stream that is within the 0.0 to 49.9 ppm (mg/L) range. The device features a large LCD with protective cover. Users may choose from automatic or manual dosing modes. When in automatic mode the dry contact relay is activated when a reading is above the set point. The relay can be used to supply power to a dosing pump or a solenoid connected to a valve. The BL983324 can also be used to monitor the quality of water produced from ion exchange, reverse osmosis (RO) or distillation.*The BL983324 uses a 0.5 conversion factor in which 1.0 ?S/cm = 0.5 ppm.
Multicolor LED Indicator
LED changes color based on status.
Fire Retardant Casing
For additional safety the controllers outer case is made of fire resistant plastic.
Splash Resistant Cover
A clear plastic cover protects the face panel from dirt and liquids.
CARACTERíSTICAS DEL PRODUCTO
Adjustable Dry Contact Dosing Relay
The BL983324 features a dosing relay that is activated when the reading is above a user programmable set point.
Programmable Overdose Protection
For enhanced safety the mini controller can be programmed to deactivate the dosing relay if the set point is not reached within a specified time interval. The overdosing timer is programmable from 5 to 30 minutes or disabled.
Relay Control Override
With the flick of a switch the mini controller’s relay can be disabled (Off), placed in control (Auto), or be activated for manual operation (On) which is useful for priming a dosing pump.
Multicolor LED Indicator
Multicolor LED indicator allows an operator to quickly check the status of the controller.
- Green = Meter in measurement mode and reading is below the set point.
- Orange/Yellow = Reading is above the set point and the relay is activated.
- Blinking Red = Indicates an alarm condition such as when the maximum dosing time has been exceeded.
Fuse Protected Dosing Contacts
The relay dosing contact is rated for up to a 2A load and is fuse protected.
Labeled Termination Connections
Quick-connect terminal blocks are clearly labeled for easy connection to power, conductivity probe and relay that can be used to operate a dosing pump, valve, audible alarm, or light.
1/2″ NPT Male Threaded Amperometric Probe for Mounting In-line*
The BL983324 mini controller uses the HI7634 conductivity probe that is available with different cable lengths.
*HI7634 is not included and must be ordered separately
| Peso |
0 , 394 kg |
|---|
| Código | BL983324-1 |
| Intervalo de TDS | 0.0 a 49.9 mg/L (ppm) |
| Resolución de TDS | 0.1 mg/L (ppm) |
| Exactitud de TDS (@25°C/77°F) | ±2% de la escala completa. |
| Factor de conversión de TDS | 0.5 |
| Compensación de temperatura | automática de 5 a 50°C (41 a 122°F) con ß=2%/ºC |
| Calibración | manual, con potenciómetro CAL |
| Relevador de dosificación | máximo 2A (protegido por fusible), 250 VCA, 30 VCD, el contacto cierra cuando la medición > punto de ajuste |
| Punto de ajuste | ajustable de 0 a 49.9 mg/L (ppm) |
| Tiempo de sobredosificación | ajustable, tìpicamente de 5 a aproximadamente 30 minutos |
| Alimentación eléctrica | BL983324-0: adaptador de 12 VCD (incluído) BL983324-1: 115/230 VCA; 50/60Hz |
| Dimensiones | 83 x 53 x 99 mm (3.3 x 2.1 x 3.9’’) |
| Peso | BL983324-0: 200 g (7.1 oz.) BL983324-1: 300 g (10.6 oz.) |
| Información para ordenar | Se suministra con soportes de montaje, cubierta transparente y manual de instrucciones. |
| Sonda recomendada | Sonda de CE/TDS HI7634-00 con sensor interno de temperature y 2 m (6.6’) de cable (no incluído). |
