Conductivity Controller (0.00 to 19.99 S/cm) – BL983322-1 | 115/230VAC
$310.740
+ IVA
9 disponibles
9 disponibles
The BL983322 is a compact, panel mounted, process controller for measuring electrolytic conductivity (EC) of a process stream. The device features a large LCD with protective cover. Users may choose from automatic or manual dosing modes. When in automatic mode the dry contact relay is activated when a reading is above the set point. The relay can be used to activate a solenoid that switches from one DI (deionized) tank to another or to open a valve that will allow lower EC water to flow into a tank being monitored in order to lower its EC. The BL983322 can also be used to monitor the quality of water from DI tanks or from a distillation apparatus. The BL983322 measures EC from 0.00 to 19.99 ?S/cm.
Multicolor LED Indicator
LED changes color based on status.
Fire Retardant Casing
For additional safety the controllers outer case is made of fire resistant plastic.
Splash Resistant Cover
A clear plastic cover protects the face panel from dirt and liquids.
CARACTERíSTICAS DEL PRODUCTO
Adjustable Dry Contact Dosing Relay
The BL983322 features a dosing relay that is activated when the reading is above a user programmable set point.
Programmable Overdose Protection
For enhanced safety the mini controller can be programmed to deactivate the dosing relay if the set point is not reached within a specified time interval. The overdosing timer is programmable from 5 to 30 minutes or disabled.
Relay Control Override
With the flick of a switch the mini controller’s relay can be disabled (Off), placed in control (Auto), or be activated for manual operation (On) which is useful for priming a dosing pump.
Multicolor LED Indicator
Multicolor LED indicator allows an operator to quickly check the status of the controller.
- Green = Meter in measurement mode and reading is below the set point.
- Orange/Yellow = Reading is above the set point and the relay is activated.
- Blinking Red = Indicates an alarm condition such as when the maximum dosing time has been exceeded.
Fuse Protected Dosing Contacts
The relay dosing contact is rated for up to a 2A load and is fuse protected.
Labeled Termination Connections
Quick-connect terminal blocks are clearly labeled for easy connection to power, conductivity probe and relay that can be used to operate a dosing pump, valve, audible alarm, or light.
1/2″ NPT Male Threaded Amperometric Probe for Mounting In-line*
The BL983322 mini controller uses the HI7634 conductivity probe that is available with different cable lengths.
*HI7634 is not included and must be ordered separately
?

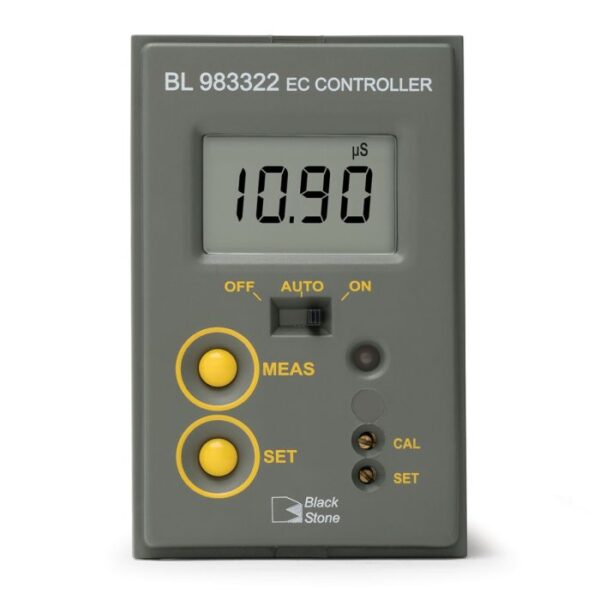

Front View
Installation cut-out dimensions are provided as well as outside panel dimensions.
Side View
Adjustable location brackets allow the controller to slide easily and securely into place..
| Peso |
0 , 392 kg |
|---|
| Intervalo | 0.00 a 19.99 µS/cm |
| Resolución | 0.01 µS/cm |
| Exactitud (@ 25°C / 77°F) | ± 2% de la escala completa |
| Calibración | Manual, con perilla CAL |
| Relé dosificador | Máximo 2A ??(protección con fusible), 250 VCA, 30 VCD |
| Selección de dosificación | Relé activado (contacto cerrado) cuando la medición es mayor que el punto de ajuste |
| Punto de ajuste | Ajustable de 0 a 19.99 µS/cm |
| Protección contra sobredosificación | Regulable, típicamente de 5 a aproximadamente 30 minutos |
| Compensación de temperatura | Automática de 5 a 50°C (41 a 122°F) con beta = 2%/ºC |
| Fuente de alimentación | Modelos "-0": Adaptador de 12 VCD (incluido) Modelos "-1": 115/230 VCA; 50/60Hz |
| Dimensiones | 83 x 53 x 99 mm (3.3 x 2.1 x 3.9'') |
| Peso | Modelos "-0": 200 g (7.1 onzas) Modelos "-1": 300 g (10.6 onzas) |
| Información para ordenar | El BL983322-1 (115/230 VCA) y el BL983322-0 (12 VCD) se suministran con soportes de montaje, tapa transparente y manual de instrucciones. |
